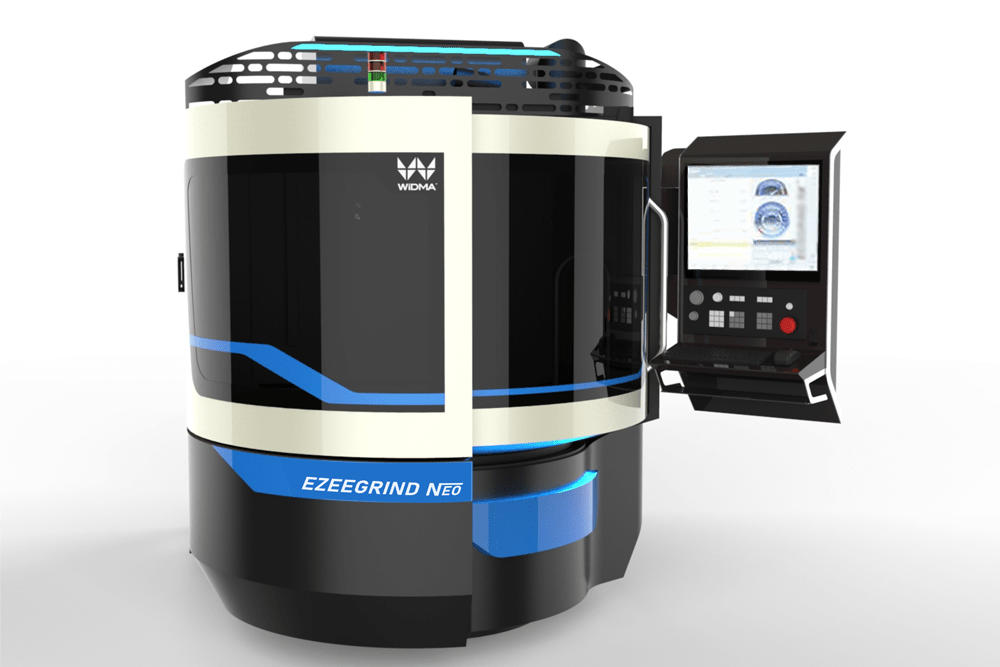

EzeeGrind Neo
ADDING VALUE TO YOUR CNC OFFERINGS

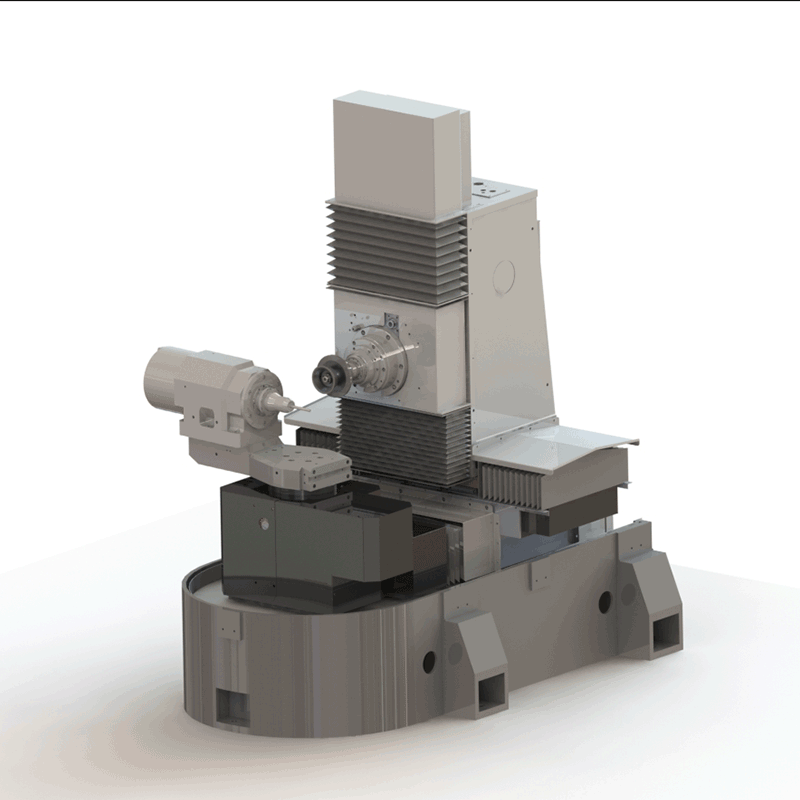

Rigid Machine Structure
Powerful Spindles

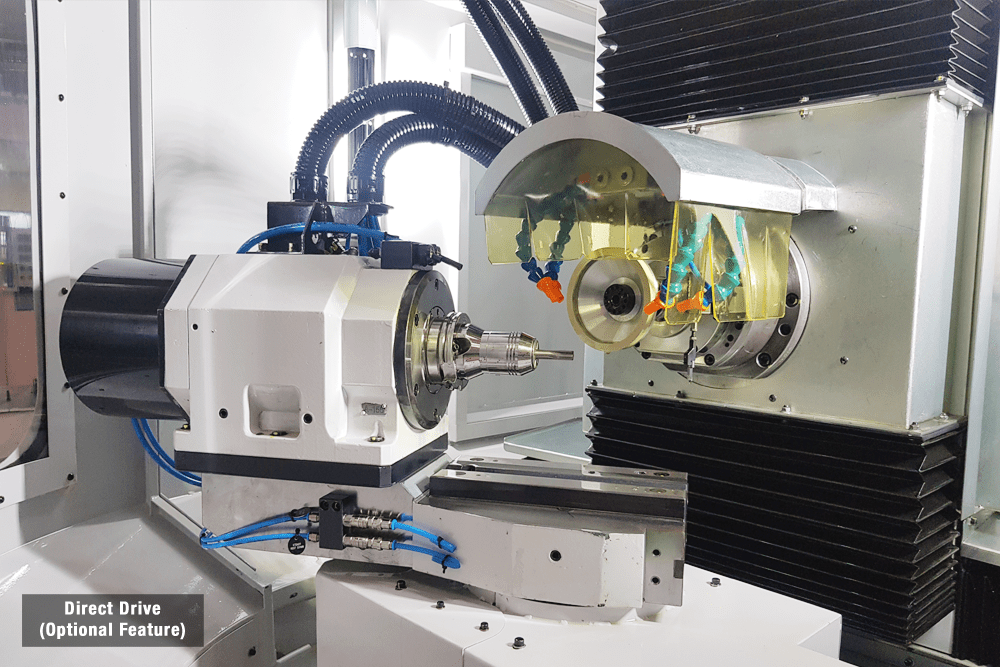

Direct Drive for A-axis
Technical Specifications
| Description | Unit | Specifications |
| Machine Capacity | ||
| No. of CNC axes | 5 | |
| Tool diameter range for manufacturing | mm | 3 to 16 |
| Max. work piece diameter for resharpening | mm | 180 |
| Max. work piece length from GPL for face grinding | mm | 310 |
| Max. work piece length from GPL for periphery (OD) grinding | mm | 300 |
| Max. work piece length from GPL for flute grinding – Helix angle 30° | mm | 310 |
| Linear Axes | ||
| Stroke X | Y | Z | mm | 260 | 260 | 280 |
| Rapid traverse X | Y | Z | mm | 20 | 20 | 20 |
| A-Axis (Work head) | ||
| A Axis Rotation | deg | infinite |
| Rotational Speed | RPM | 800 |
| Spindle taper | ISO 50 | |
| B-Axis (Work head swivel axis) | ||
| Swivel Angle | deg | +30° / -180° |
| Rotational Speed | RPM | 25 |
| Wheel Spindle | ||
| No. of grinding spindle ends | 1 | |
| Spindle power (Coninuous | Peak) | kW | 7 | 11 |
| Max. spindle speed | RPM | 9000 |
| Other Data | ||
| Electrical Power (Basic Machine) | kVA | 15 |
| Basic machine Floor Plan (WxDxH) | mm | 2450 x 2950 x 2150 |
| Machine Weight | kg | 4500 |
| Air requirement | CFM | 4.5 |
| Air Pressure | bar | 5 |
