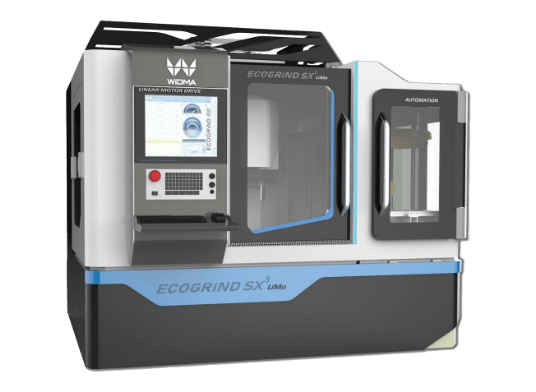

EcoGrind SX5 LiMo
HIGH TECH MACHINES FOR MICRO TOOLS

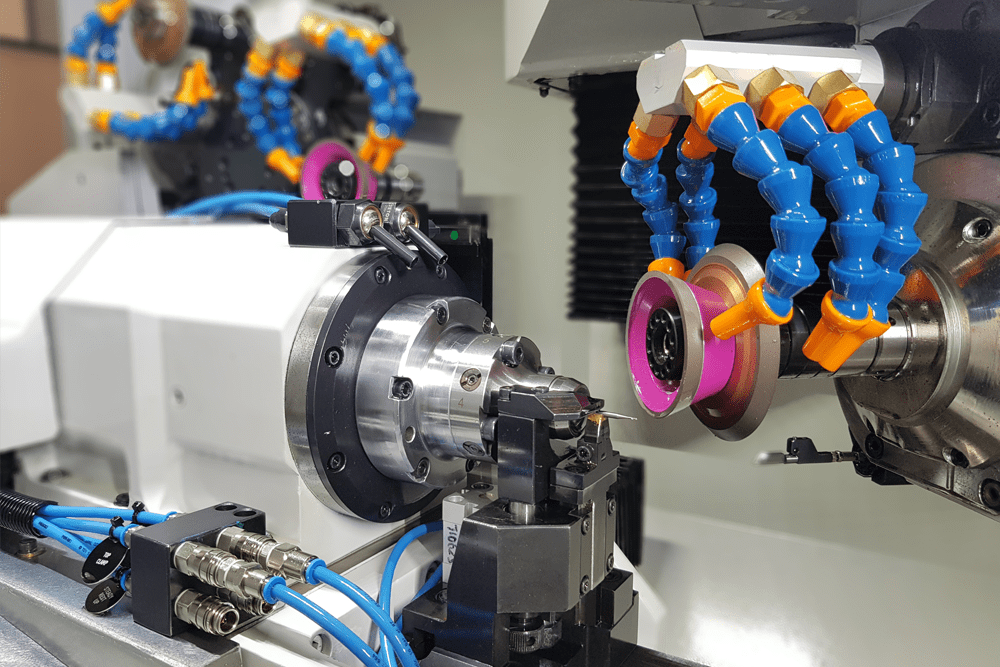

Three-station Auto Wheel Changer

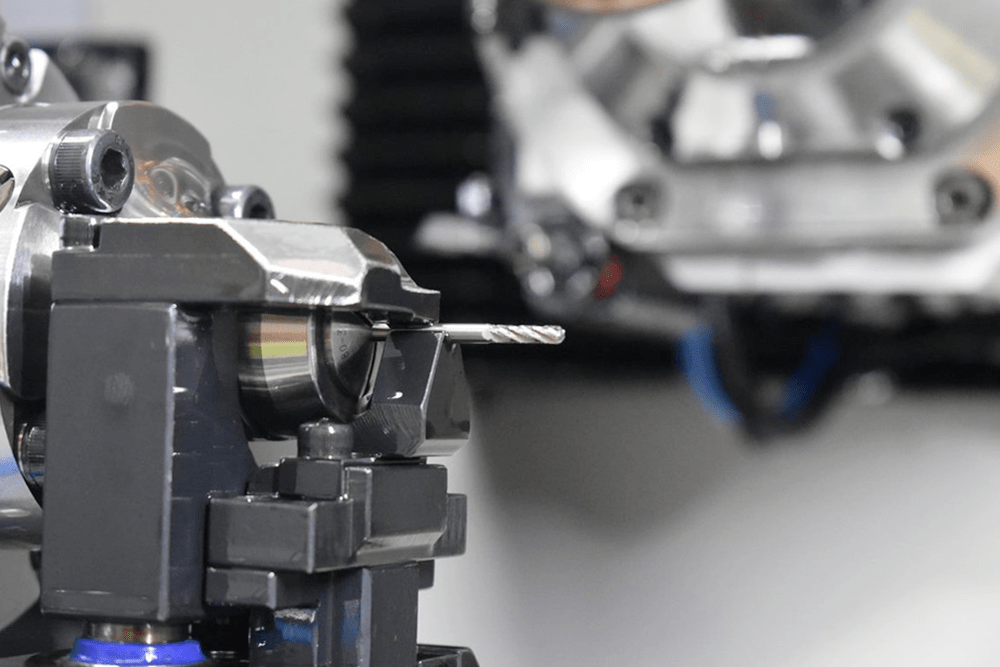

Steady Rest
Robot Automation For Component Loading

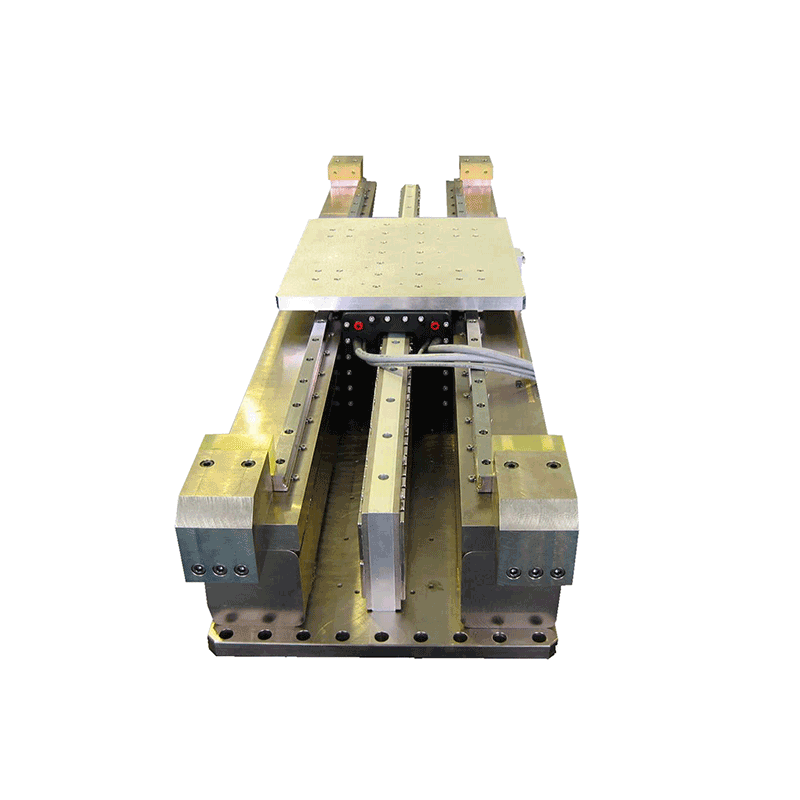

Linear Motor Technology
Technical Specifications
| Description | Unit | Specifications |
| Machine Capacity | ||
| No. of CNC axes | 5 | |
| Tool diameter range for manufacturing | mm | 0.5 to 12 |
| Max. work piece diameter for resharpening | mm | 125 |
| Max. work piece length from GPL for face grinding | mm | 250 |
| Max. work piece length from GPL for periphery (OD) grinding | mm | 260 |
| Max. work piece length from GPL for flute grinding – Helix angle 30° | mm | 250 |
| Max. work piece weight | kg | 20 |
| Linear Axes | ||
| Stroke X | Y | Z | mm | 290 | 170 | 290 |
| Rapid traverse X | Y | Z | mm | 30 | 20 | 30 |
| A-Axis (Work head) | ||
| A Axis Rotation | deg | infinite |
| Rotational Speed | RPM | 1000 |
| Spindle taper | ISO 50 | |
| B-Axis (Wheel head swivel axis) | ||
| Swivel Angle | deg | +40° / -215° |
| Rotational Speed | RPM | 50 |
| Wheel Spindle | ||
| No. of grinding spindle ends | 1 | |
| Auto Wheel Changer with coolant manifold | 3 Wheel packs | |
| Spindle power (Coninuous | Peak) | kW | 7 | 11 |
| Max. spindle speed | RPM | 9000 |
| Spindle Nose Taper | Standard: HSK E50 Optional: HSK E40 | |
| Other Data | ||
| Electrical Power (Basic Machine) | kVA | 15 |
| Basic machine Floor Plan (WxDxH) | mm | 1800 x 2150 x 2200 |
| Machine Weight | kg | 5000 |
| Air requirement | CFM | 8.4 |
| Air Pressure | bar | 5 |
