FLEX FX SERIES – CUSTOMIZED HORIZONTAL MACHINING CENTERS
A PERFECT BLEND OF FLEXIBILITY AND PRODUCTIVITY

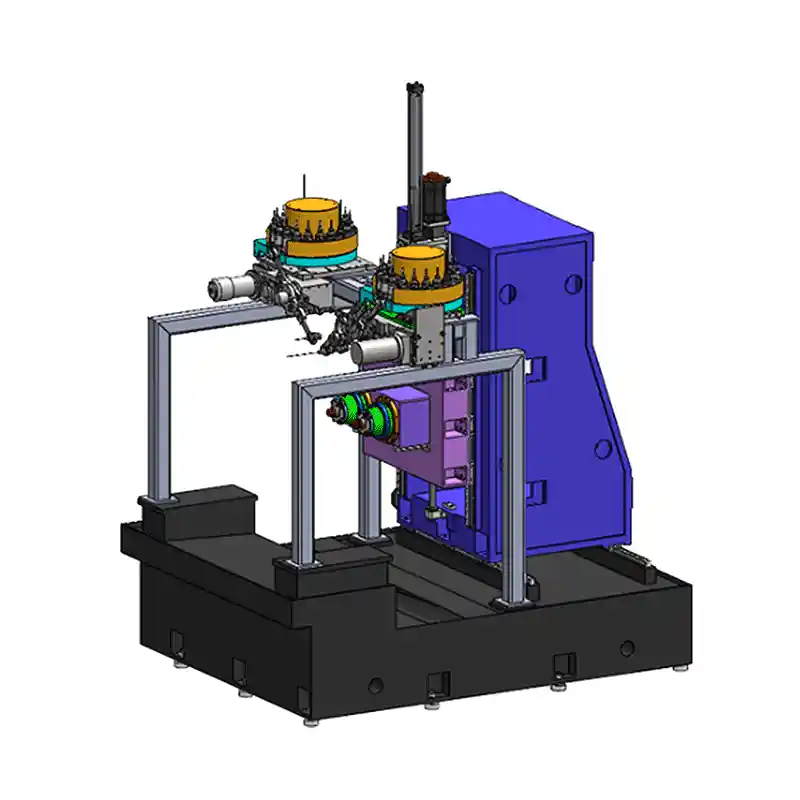

Three-axis Standard Module

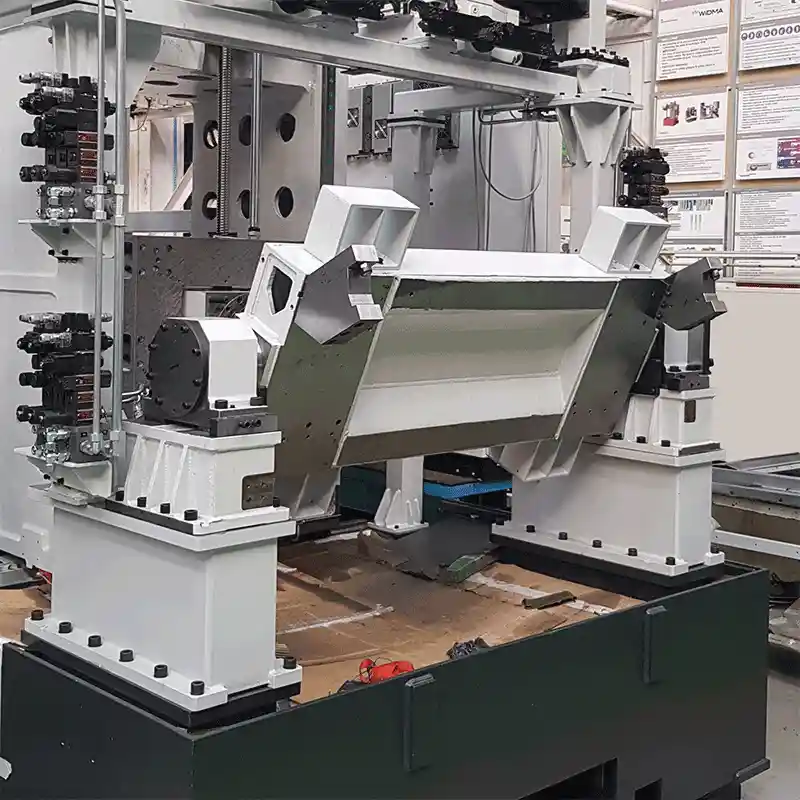

Auto Pallet Changer
Auto Tool Changer For Dedicated Machine

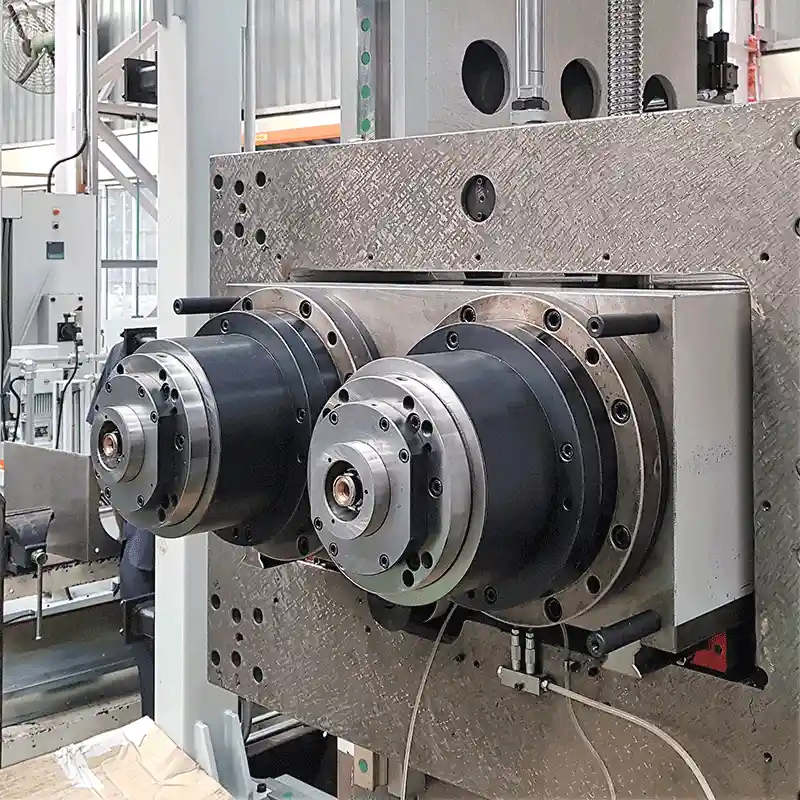

Twin Spindle Configuration
Technical Specifications
| FLEX Fx 360 – TWIN SPINDLE MACHINE | ||
| Axes movements | ||
| Total no. of axes | 5 axes | |
| Linear Axes Stroke (X/Y/Z) | mm | 360/500/400 |
| Axes Rapid rate (X/Y/Z) | m/min | 40/40/40 |
| CNC Rotary table (A1/A2) | 360 deg x 2 nos | |
| Spindle | ||
| Spindle Type | Integral motor spindle | |
| Power (Cont./30 mins) | kW | 15/18.5 (30 mins) |
| Max. RPM | RPM | 6000 / 9000 |
| Spindle taper | HSK A 63 | |
| Auto Tool Magazine (ATC) | ||
| No. of tools | No. | 20 x 2 nos |
| ATC Type | Twin arm type | |
| Max Tool diameter/length (Adj. pocket full) | mm | 80 / 300 |
| Max. tool weight | kg | 7 |
| Coolant systems | bar | Thru’ coolant @15 bar |
| Machine controls | Mitsubishi | |
| Component capacity | ||
| Component size (L x B) | mm | 250 x 250 |
| Pallet | ||
| Auto Pallet changer | Rotary type / 180 deg swivel | |
| Pallet size (L x B) | mm | 500 X 800 (fixture plate) |
| Machine dimensions | ||
| W x D x H | mm | 3100 x 5900 x 4500 |
